SATA  |  SKU: 1200013

jet X

$1,165.00 CAD
System
Nozzle Size

Add a stand out message for your customers

Subscribe to our newsletter

Sign up for exclusive offers.

Description

jet X

Works for You.

The jet X nozzle concept is based on the innovative labyrinth airflow system. It guides the air in the nozzle to exit each orifice at precisely the same pressure and free of turbulence and pulsation. This enables us to achieve exceptionally fine and homogeneous atomization and a new level of surface quality for both HVLP and RP technology.


Product advantages

  • Innovative labyrinth airflow system for outstanding atomization
  • Uniform spray pattern with clearly defined fade-out zones
  • Two jet shapes: “O” (Speed) and “I” (Control), with constant fan dimensions for all nozzle sizes
  • Available in the following versions: BASIC, DIGITAL ready, DIGITAL and DIGITAL pro
  • jet X DIGITAL Pro: Display of inlet pressure, operating time and ambient temperature; adjustable target value for the inlet pressure with alarm function; digital dashboard; easy change from bar to psi and from °C to °F and much more
  • The patented Quick Cup Connector ensures that the flow cup is held firmly in place with just a 1/4 turn, making the work of cleaning or changing the cup considerably easier.
  • The QC Quick Change thread allows an easy and quick air cap exchange with just one and a half turns.
  • You will receive an extended warranty on SATA paint spray guns, filters and main breathing apparatus free of charge.
Technical Information – HVLP
Air consumption 445,0 Nl/min
Max. inlet air pressure 10,0 bar
Packaging unit 1,0 Pieces
Net weight 0,084 - 0,637 kg
Recommended air inlet pressure 2,0 bar
Recommended spraying distance 10 - 15 cm
Cup connection type QCC



Technical Information – RP
Air consumption 335,0 Nl/min
Max. inlet air pressure 10,0 bar
Packaging unit 1,0 Pieces
Net weight 0,084 - 0,637 kg
Recommended air inlet pressure 2,0 bar
Recommended spraying distance 17 - 21 cm
Cup connection type QCC



Compatibility with SATA RPS - multi-purpose cups / LCS

Compatible with the Additional Digital Air Micrometer - adam X and adam X pro.

SataJet Jet X

Advanced Atomization

The SATAjet X utilizes cutting-edge nozzle technology that enhances paint atomization, resulting in an exceptionally fine mist.

This precision ensures a uniform application, minimizing overspray and delivering a flawless finish, which is crucial for achieving professional-quality results.

Ergonomic Build

Designed with user comfort in mind, the SATAjet X features a lightweight and well-balanced body.

This ergonomic design allows for easy maneuverability, significantly reducing fatigue during long painting sessions, so users can maintain focus and control without discomfort.

download (5).gif__PID:ac8835cd-9abe-469f-b479-a6421d44d314

Customizable Settings

The gun offers a wide range of adjustable settings, including fluid, air pressure, and fan pattern controls.

This flexibility empowers users to fine-tune their application based on the specific type of paint or surface, ensuring optimal results regardless of the project requirements.

Durability

Constructed from high-quality materials, the SATAjet X is built to withstand the rigors of professional use.

Its robust design not only ensures longevity but also simplifies maintenance, allowing for quick cleaning and easy part replacement, which helps maintain consistent performance over time.

Screenshot 2024-09-18 142943.png__PID:6dbba449-3a3d-4842-9116-1493da951720

The Most Digital SATA of all Time

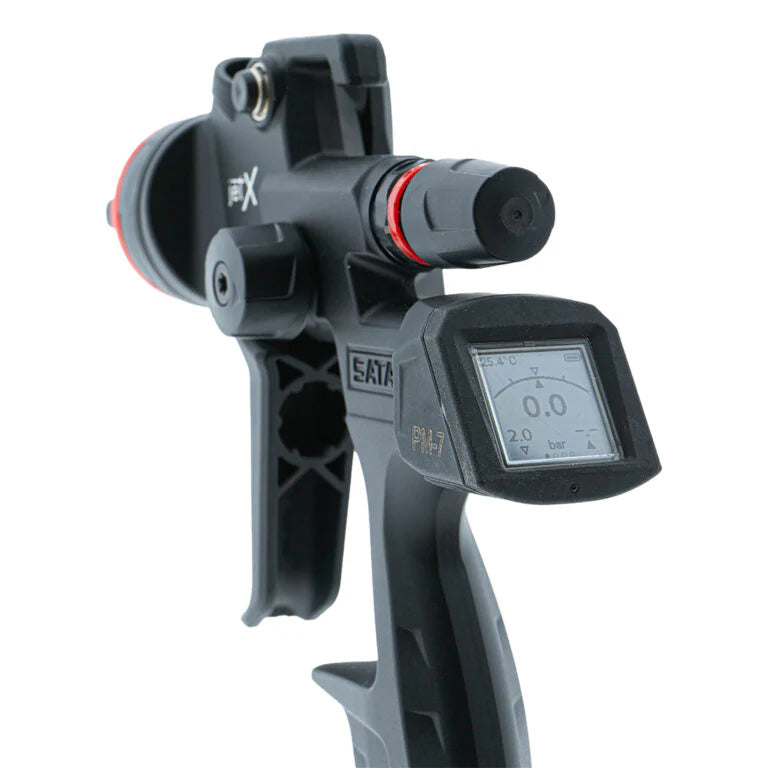

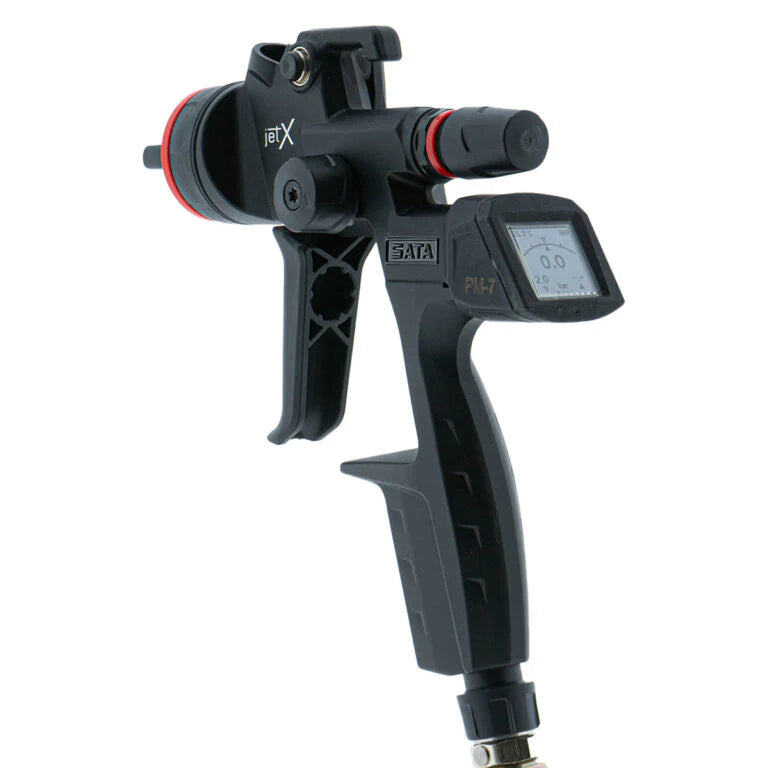

The jet X DIGITAL pro offers the full range of digital functions. Its digital unit, the adam X pro, helps the painter analyse and control the painting process. In line with the “works for you” principle, it therefore helps to optimise results.

Product Advantages

  • Innovative labyrinth airflow system for outstanding atomisation
  • Uniform spray pattern with clearly defined fade-out zones
  • Two jet shapes: “O” (Speed) and “I” (Control) with constant fan dimensions for all nozzle sizes
  • Available in the following versions: BASIC, DIGITAL ready, DIGITAL and DIGITAL pro
  • jet X DIGITAL pro: Display of inlet pressure, operating time and ambient temperature; adjustable target value for the inlet pressurewith alarm function; digital dashboard; easy change from bar to psi and from °C to °F and much more
Screenshot 2024-09-18 143619.png__PID:d2c8ee8e-1eb5-4cff-88c5-3987f330211d

Technical Date

Screenshot 2024-09-18 144122.png__PID:d95e8e14-ed6d-4c6a-8fbb-89e4a10b4a0e
SATA

jet X

From $1,165.00 CAD

jet X

Works for You.

The jet X nozzle concept is based on the innovative labyrinth airflow system. It guides the air in the nozzle to exit each orifice at precisely the same pressure and free of turbulence and pulsation. This enables us to achieve exceptionally fine and homogeneous atomization and a new level of surface quality for both HVLP and RP technology.


Product advantages

Technical Information – HVLP
Air consumption 445,0 Nl/min
Max. inlet air pressure 10,0 bar
Packaging unit 1,0 Pieces
Net weight 0,084 - 0,637 kg
Recommended air inlet pressure 2,0 bar
Recommended spraying distance 10 - 15 cm
Cup connection type QCC



Technical Information – RP
Air consumption 335,0 Nl/min
Max. inlet air pressure 10,0 bar
Packaging unit 1,0 Pieces
Net weight 0,084 - 0,637 kg
Recommended air inlet pressure 2,0 bar
Recommended spraying distance 17 - 21 cm
Cup connection type QCC



Compatibility with SATA RPS - multi-purpose cups / LCS

Compatible with the Additional Digital Air Micrometer - adam X and adam X pro.

System

  • HVLP Basic
  • RP Basic
  • HVLP Digital
  • RP Digital
  • HVLP Digital Pro
  • HVLP Digital Ready
  • RP Digital Ready
  • RP Digital Pro

Nozzle Size

  • 1.1 I
  • 1.2 I
  • 1.3 I
  • 1.4 I
  • 1.1 O
  • 1.2 O
  • 1.3 O
  • 1.4 O
